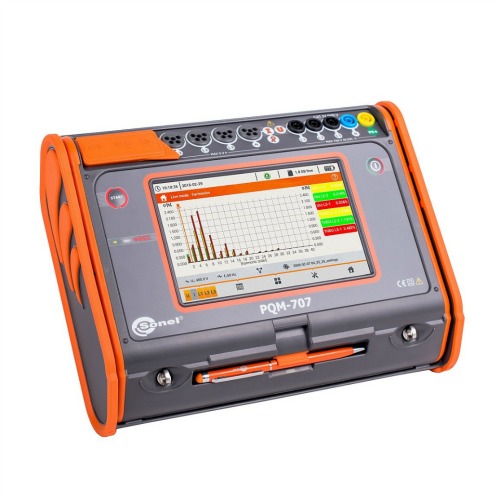

Sonel PQM-707

SKU: WMGBPQM707. Categories: , .

Product Description

Description

  • 7″ touch screen – intuitive operating
  • CAT IV 600V – high safety
  • all parameters acc. to class S – high accuracy of measurements
  • Li-Ion rechargeable battery – higher mobility
  • removable memory card – recording data with no restrictions

Possible measurements:

  • Measurements according to EN 50160,
  • Voltage L1, L2, L3, N-PE (five inputs),
    – average, minimum, maximum values, range to 760 V, ability to work with voltage transformers,
  • Current L1, L2, L3, N (four inputs),
    – average, minimum, maximum values, measurement current with range to 3 kA (depends on used clamp), ability to work with current transformers,
  • Crest factor for voltage and current,
  • Frequency from 40 Hz to 70 Hz ,
  • Active, reactive, distortion, apparent power, including the type of reactive power (capacitive, inductive),
  • Power recording:
    • Budeanu method,
    • IEEE 1459,
  • Active, reactive, apparent energy,
  • Power factor, cosφ, tgφ,
  • Up to 40th harmonics for voltage and current,
  • Total Harmonic Distortion (THD) for voltage and current,
  • Short-term (PST) and long-term (PLT) flicker,
  • Unbalance of voltage and current,
  • Current and voltage events registration including waveforms and RMS graphs half period,
  • Inrush current*
  • Calculator of energy tariffs
  • ANALYZER MEASURES AND RECORDS ACCORDING TO THE IEC 61000-4-30 CLASS S STANDARD.

Download Datasheet PQM-707
